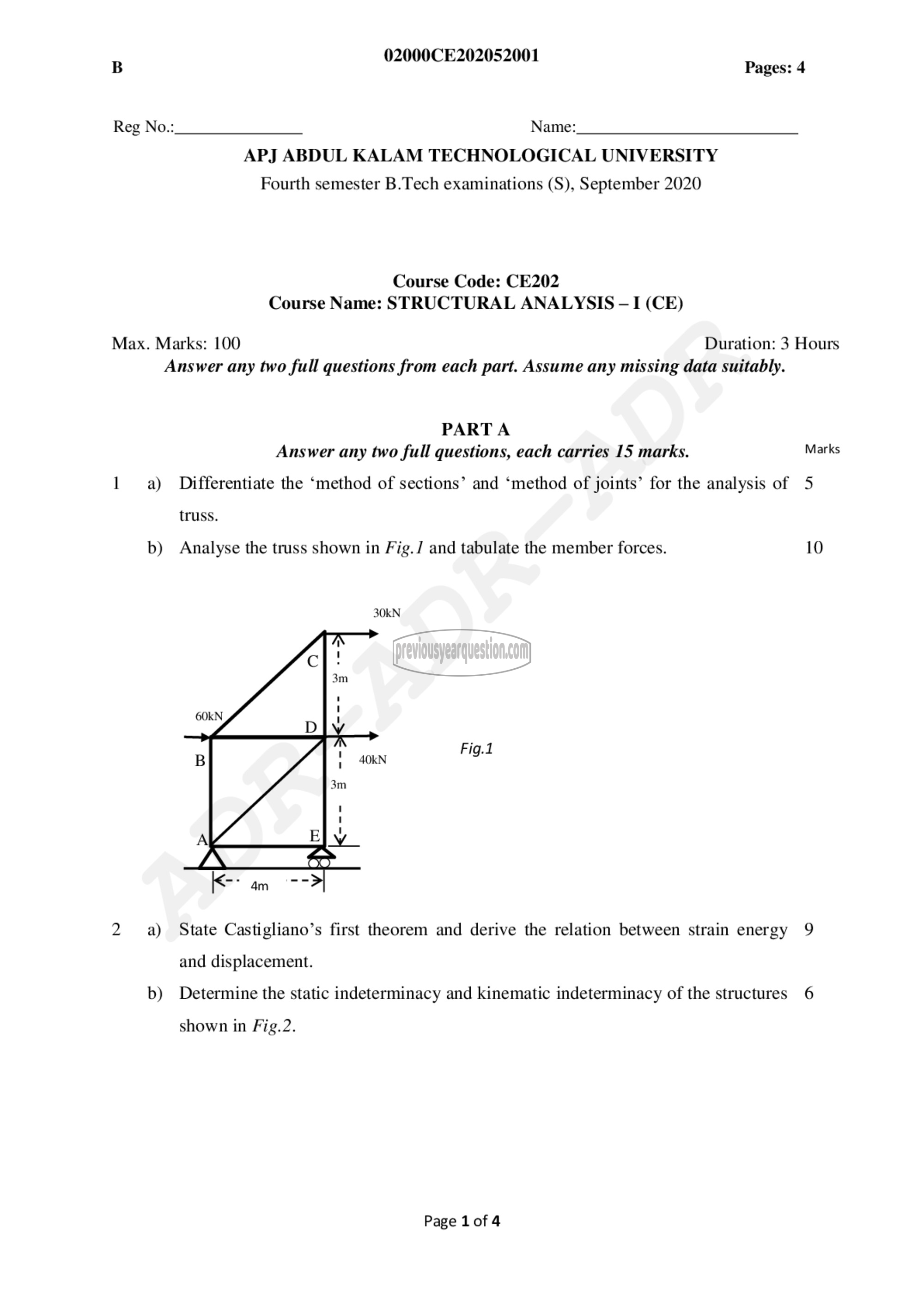

ர 02000CE202052001 Pages: 4

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

Fourth semester B.Tech examinations (S), September 2020

Course Code: CE202
Course Name: STRUCTURAL ANALYSIS - I (CE)

Max. Marks: 100 Duration: 3 Hours
Answer any two full questions from each part. Assume any missing data suitably.

PARTA
Answer any two full questions, each carries 15 marks. Marks
1 a) Differentiate the ‘method of sections’ and ‘method of joints’ for the analysis of 5

truss.

b) Analyse the truss shown in Fig./ and tabulate the member forces. 10

30௮

Fig.1

2 2) State Castigliano’s first theorem and derive the relation between strain energy 9
and displacement.
b) Determine the static indeterminacy and kinematic indeterminacy of the structures 6

shown in Fig.2.

Page 1of 4
