Reg No.:

Max. Marks: 100

1௮

020001120 1092001106:

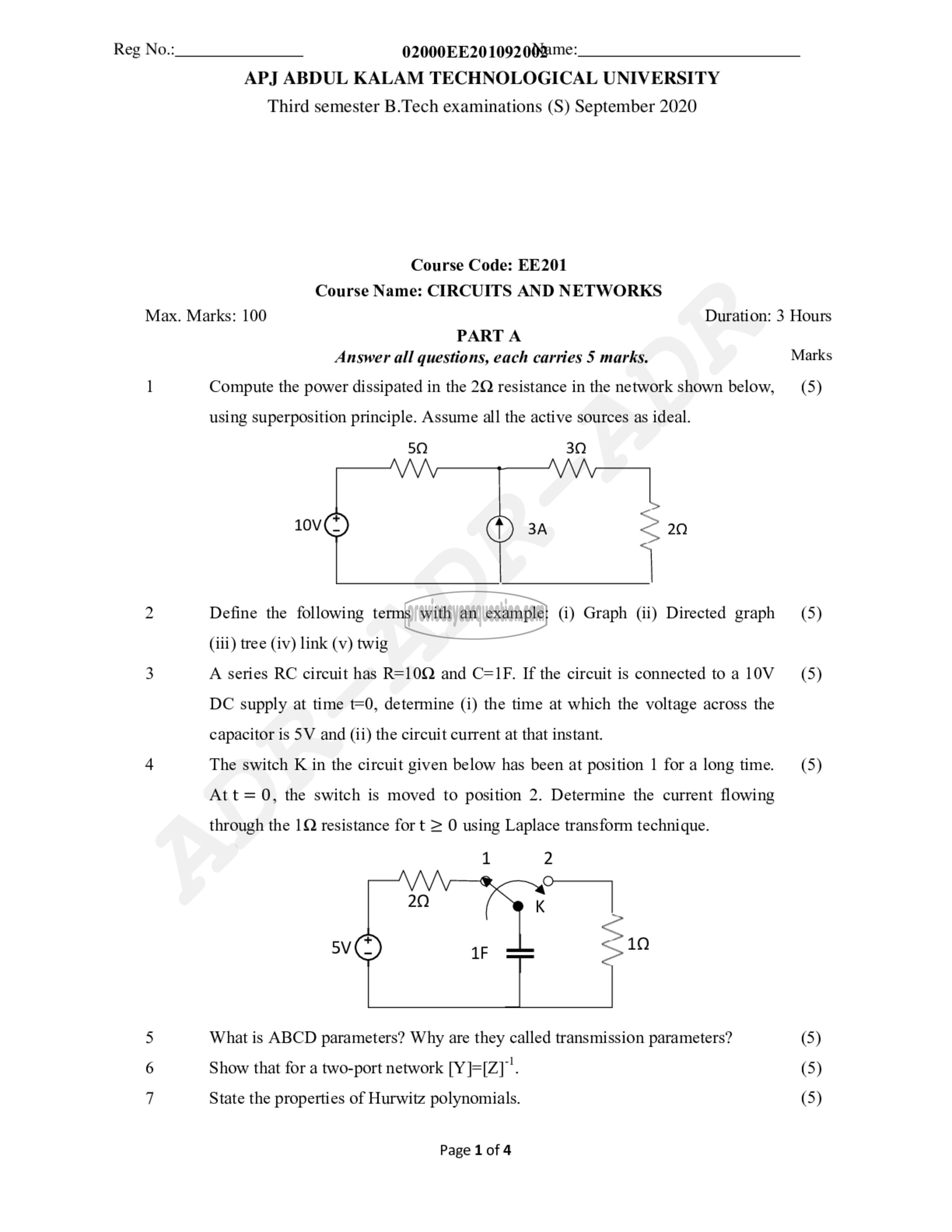

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

Third semester B.Tech examinations (S) September 2020

Course Code: EE201
Course Name: CIRCUITS AND NETWORKS

PART A
Answer all questions, each carries 5 marks.

Compute the power dissipated in the 2Q resistance in the network shown below,
using superposition principle. Assume all the active sources as ideal.

50 30

10V ¢ ‏اله‎ : 2 2௦

]

Define the following terms with an example: (i) Graph (ii) Directed graph

(111) tree (iv) link (v) twig

A series RC circuit has R=10Q and C=1F. If the circuit is connected to a 10V
DC supply at time t=0, determine (i) the time at which the voltage across the
capacitor is 59 and (ii) the circuit current at that instant.

The switch K in the circuit given below has been at position 1 for a long time.
Att=0, the switch is moved to position 2. Determine the current flowing
through the 1Q resistance for t 2 0 using Laplace transform technique.

1 2
+ 2:
20 K |
SV 47 = 10

What is ABCD parameters? Why are they called transmission parameters?
Show that for a two-port network ಗ].

State the properties of Hurwitz polynomials.

Page 1 of 4

Duration: 3 Hours

Marks

(5)

(5)

(5)

(5)

(5)
(5)
(5)
