a)

b)

a)
b)

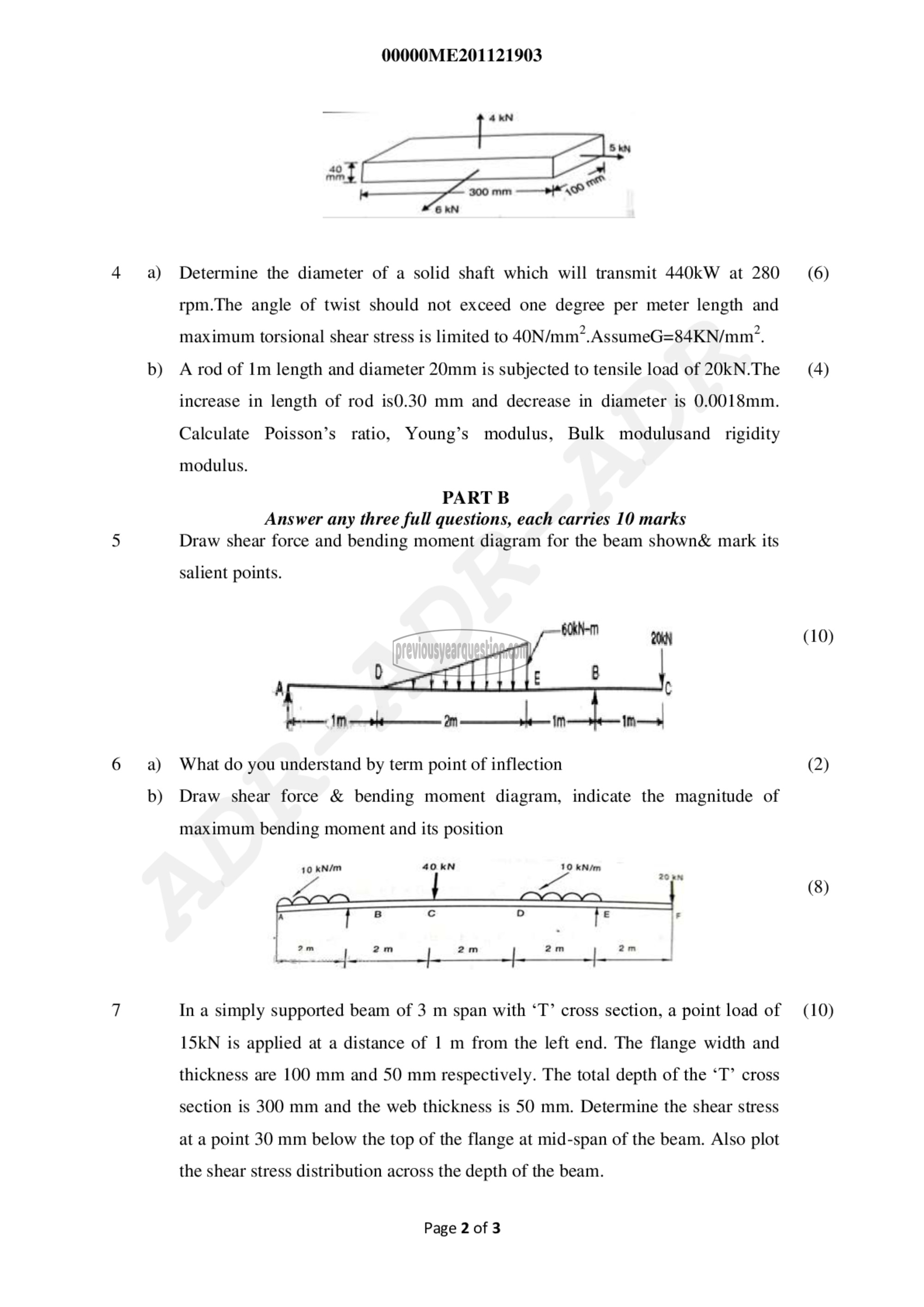

00000ME201121903

Determine the diameter of a solid shaft which will transmit 440kW at 280 (6)
rpm.The angle of twist should not exceed one degree per meter length and
maximum torsional shear stress is limited to 40N/mm?,AssumeG=84KN/mm’.
A rod of Im length and diameter 20mm is subjected to tensile load of 20KN.The (4)
increase in length of rod 150.30 mm and decrease in diameter is 0.0018mm.
Calculate Poisson’s ratio, Young’s modulus, Bulk modulusand rigidity
modulus.
PART छ

Answer any three full questions, each carries 10 marks

Draw shear force and bending moment diagram for the beam shown& mark its

salient points.

(10)
What do you understand by term point of inflection (2)
Draw shear force & bending moment diagram, indicate the magnitude of
maximum bending moment and its position
10 kN/m 40kN 10 kN/m
(8)

Sr 1
2m ന ಕಹ 60 ‏ال‎ 2m 2m 2m
ന്ത ‏ل عق وا _ ہے‎

In a simply supported beam of 3 m span with ‘T’ cross section, a point load of (10)
1510 is applied at a distance of 1 m from the left end. The flange width and
thickness are 100 mm and 50 mm respectively. The total depth of the ‘T’ cross
section is 300 mm and the web thickness is 50 mm. Determine the shear stress
at a point 30 mm below the top of the flange at mid-span of the beam. Also plot

the shear stress distribution across the depth of the beam.

Page 2 of 3
