APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY Previous Years Question Paper & Answer
University : APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
Course : B.Tech
Semester : SEMESTER 6
Subject : Computer Aided Design and Analysis
Year : 2019
Term : MAY
Branch : MECHANICAL ENGINEERING
Scheme : 2015 Full Time
Course Code : ME 308
Page:3
PDF Text (Beta):
14 a)
b)
F1085 Pages: 3

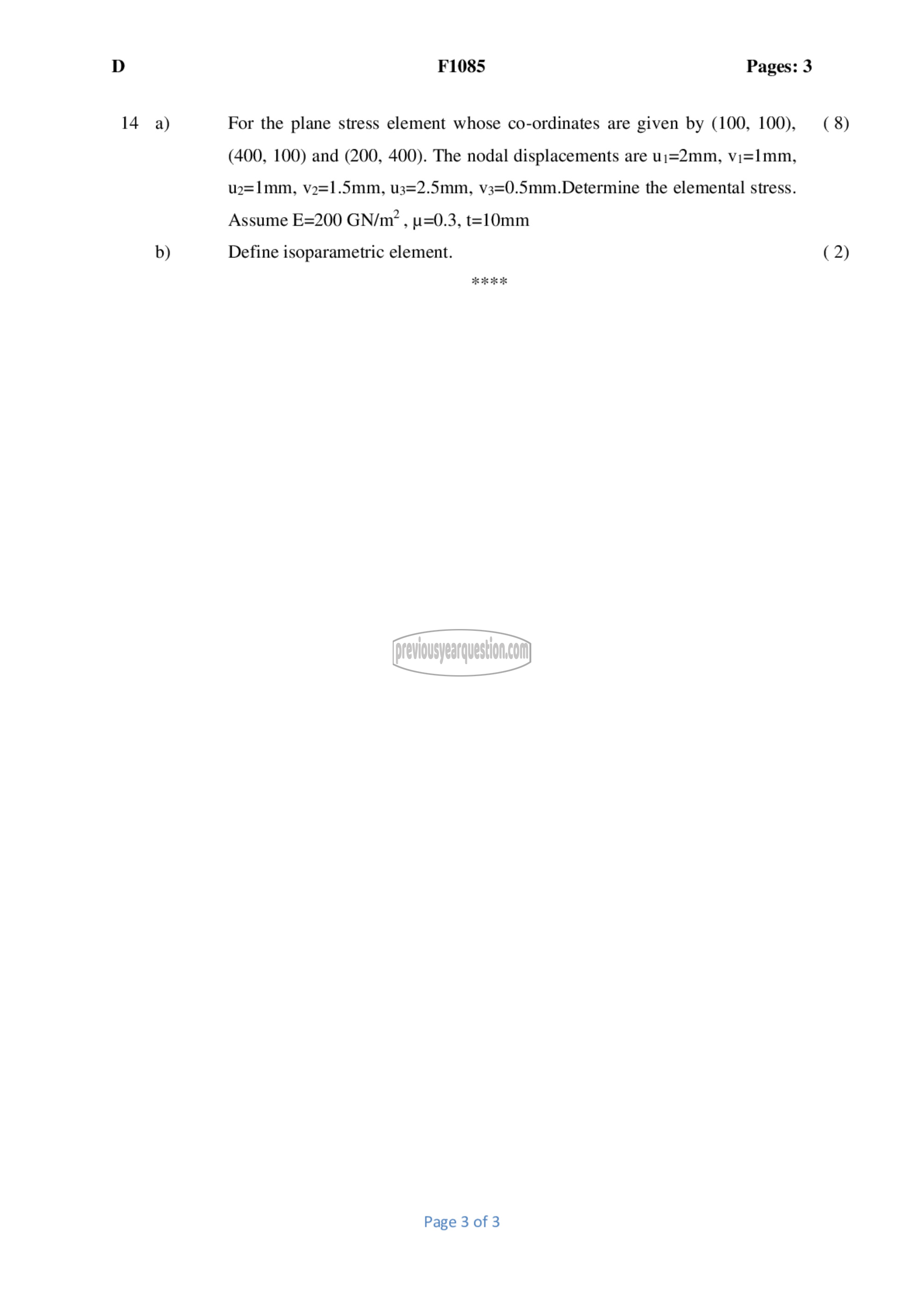

For the plane stress element whose co-ordinates are given by (100, 100), (8)
(400, 100) and (200, 400). The nodal displacements are uj=2mm, vi=lmm,
02511111, v2=1.5mm, u3=2.5mm, v3=0.5mm.Determine the elemental stress.
Assume E=200 GN/m? + 50.3, t=10mm
Define isoparametric element. (2)
Page 3 of 3
