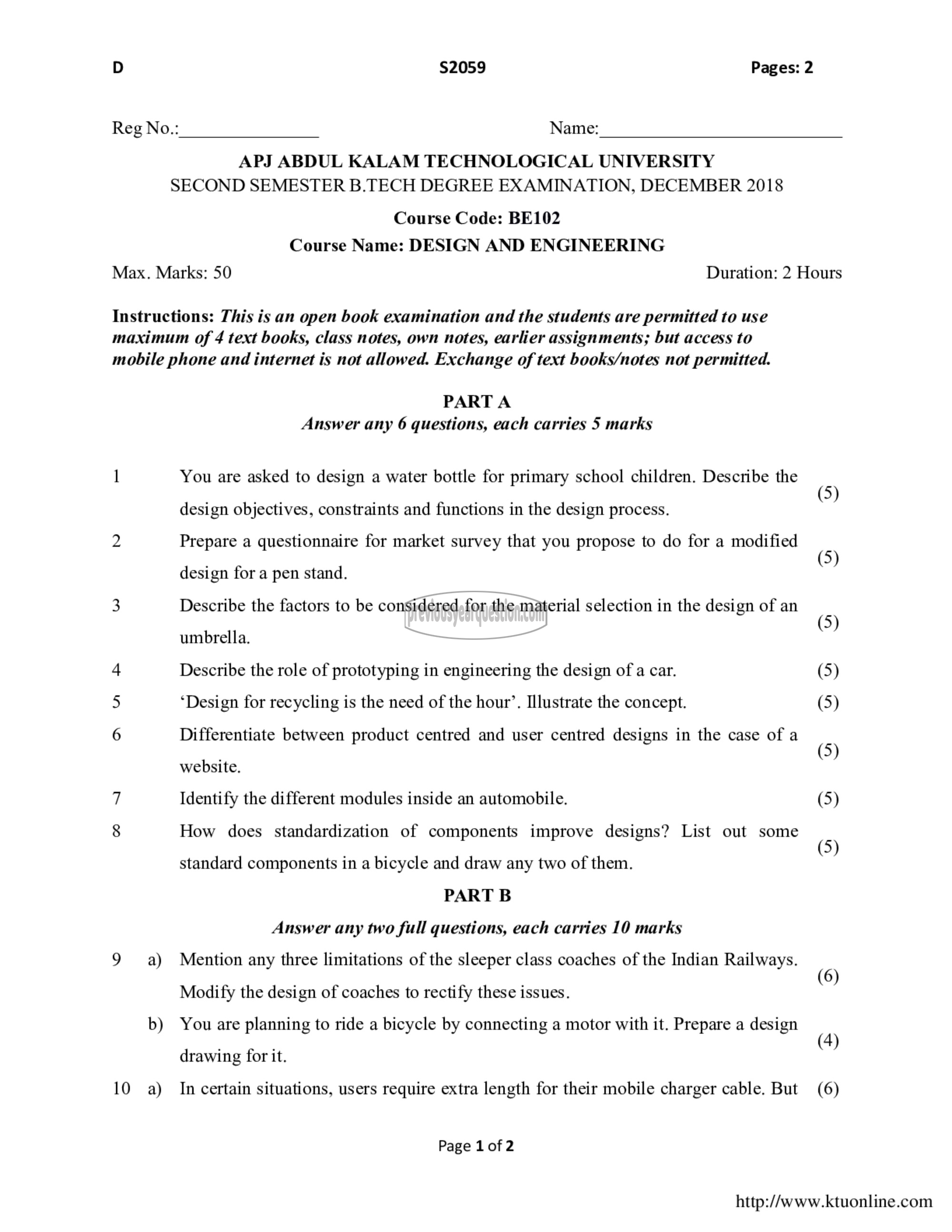

D $2059 Pages: 2

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
SECOND SEMESTER B.TECH DEGREE EXAMINATION, DECEMBER 2018
Course Code: BE102
Course Name: DESIGN AND ENGINEERING
Max. Marks: 50 Duration: 2 Hours

Instructions: This is an open book examination and the students are permitted to use
maximum of 4 text books, class notes, own notes, earlier assignments; but access to
mobile phone and internet is not allowed. Exchange of text books/notes not permitted.

PARTA
Answer any 6 questions, each carries 5 marks

1 You are asked to design a water bottle for primary school children. Describe the
design objectives, constraints and functions in the design process. இ
2 Prepare a questionnaire for market survey that you propose to do for a modified
design for a pen stand. ©)
3 Describe the factors to be considered for the material selection in the design of an
umbrella. ©)
4 Describe the role of prototyping in engineering the design of a car. (5)
‘Design for recycling is the need of the hour’. Illustrate the concept. (5)
6 Differentiate between product centred and user centred designs in the case of a
website. 90
7 Identify the different modules inside an automobile. (5)
8 How does standardization of components improve designs? List out some (5)
standard components in a bicycle and draw any two of them.
PART B
Answer any two full questions, each carries 10 marks
9 a) Mention any three limitations of the sleeper class coaches of the Indian Railways.
Modify the design of coaches to rectify these issues. 2
b) You are planning to ride a bicycle by connecting a motor with it. Prepare a design 7

drawing for it.

10 a) Incertain situations, users require extra length for their mobile charger cable. But (6)

Page 1 2
