11
12

13

14

a)
b)
०)
d)
a)
b)
०)

000004 (04051 21803

< ` (0, 50)

1 2 5
(0, 0) (50, 0)

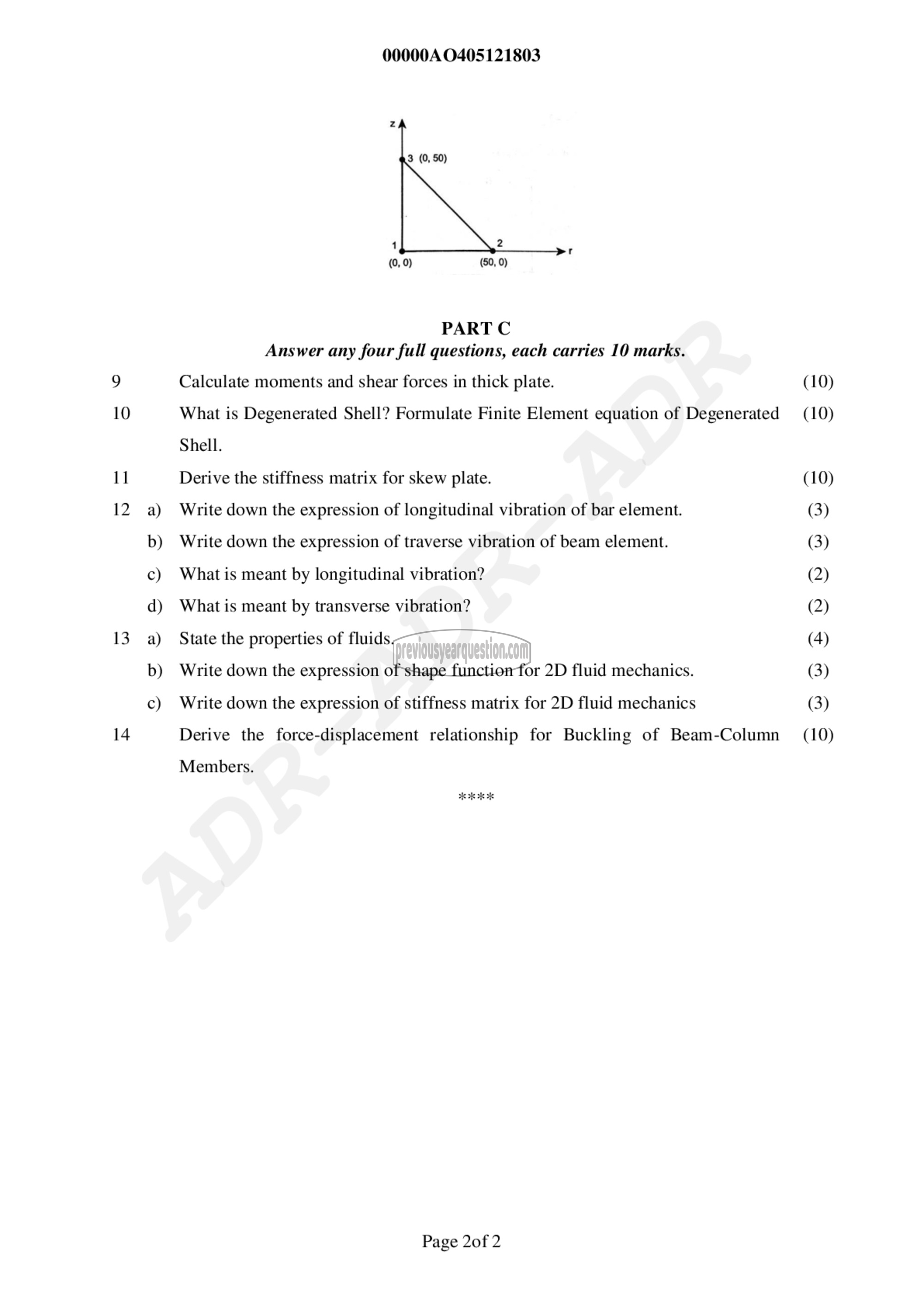

PART C

Answer any four full questions, each carries 10 marks.
Calculate moments and shear forces in thick plate.
What is Degenerated Shell? Formulate Finite Element equation of Degenerated
Shell.
Derive the stiffness matrix for skew plate.
Write down the expression of longitudinal vibration of bar element.
Write down the expression of traverse vibration of beam element.
What is meant by longitudinal vibration?
What is meant by transverse vibration?
State the properties of fluids.
Write down the expression of shape function for 2D fluid mechanics.
Write down the expression of stiffness matrix for 2D fluid mechanics
Derive the force-displacement relationship for Buckling of Beam-Column

Members.

Page 2of 2

(10)
(10)

(10)
(3)
(3)
(2)
(2)
(4)
(3)
(3)

(10)
