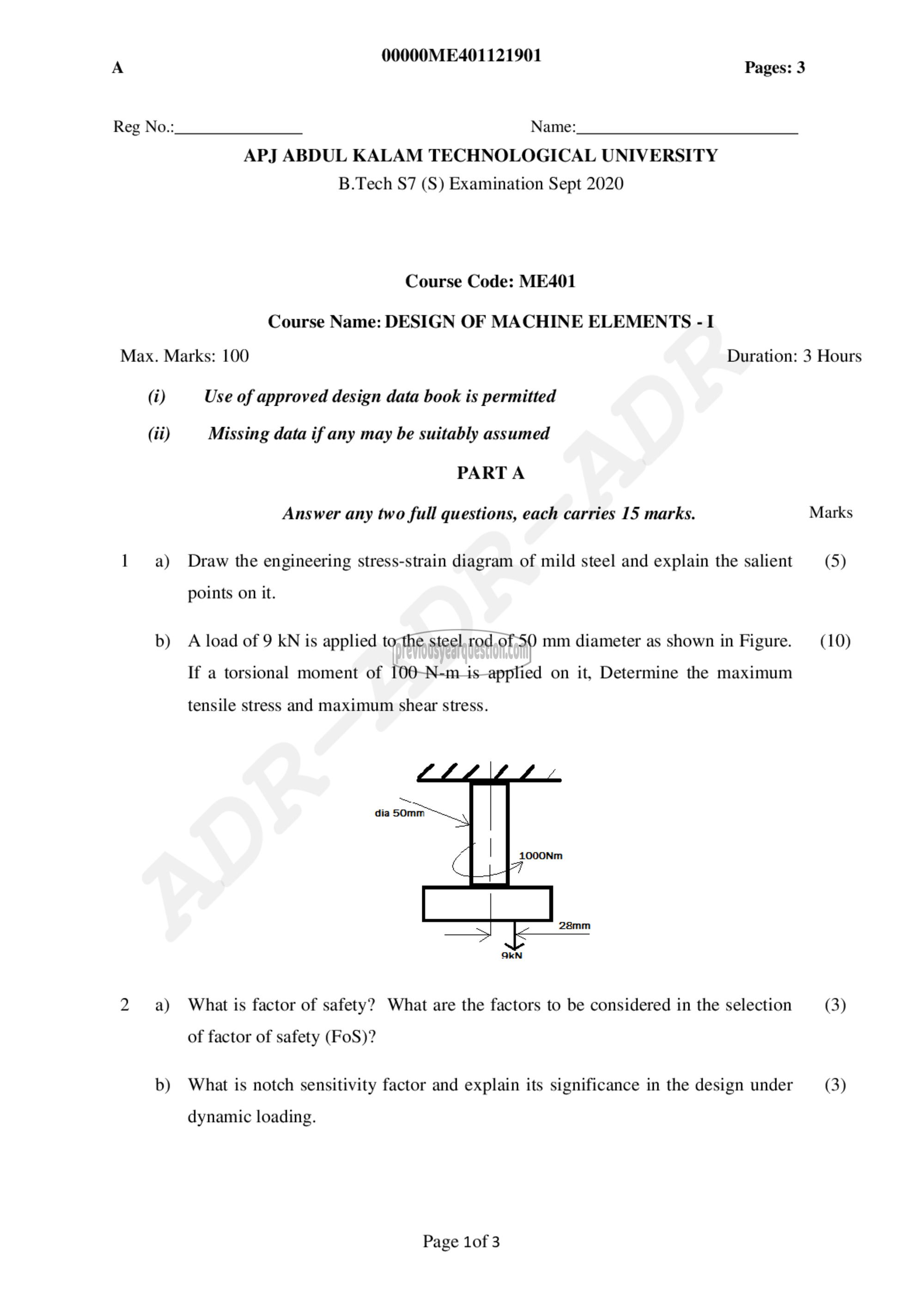

۸ 00000ME401121901 Pages: 3

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
B.Tech S7 (S) Examination Sept 2020

Course Code: ME401

Course Name: DESIGN OF MACHINE ELEMENTS - I
Max. Marks: 100 Duration: 3 Hours

(i) Use of approved design data book is permitted
(ii) Missing data if any may be suitably assumed
PARTA
Answer any two full questions, each carries 15 marks. Marks

1 a) Draw the engineering stress-strain diagram of mild steel and explain the salient (5)

points on it.

b) A load of 9 KN is applied to the steel rod of 50 mm diameter as shown in Figure. (10)
If a torsional moment of 100 N-m is applied on it, Determine the maximum

tensile stress and maximum shear stress.

dia ம்‌

1000Nm

28mm

QkN

2 8) What is factor of safety? What are the factors to be considered in the selection (3)

of factor of safety (FoS)?

b) What is notch sensitivity factor and explain its significance in the design under (3)

dynamic loading.

Page 1083
