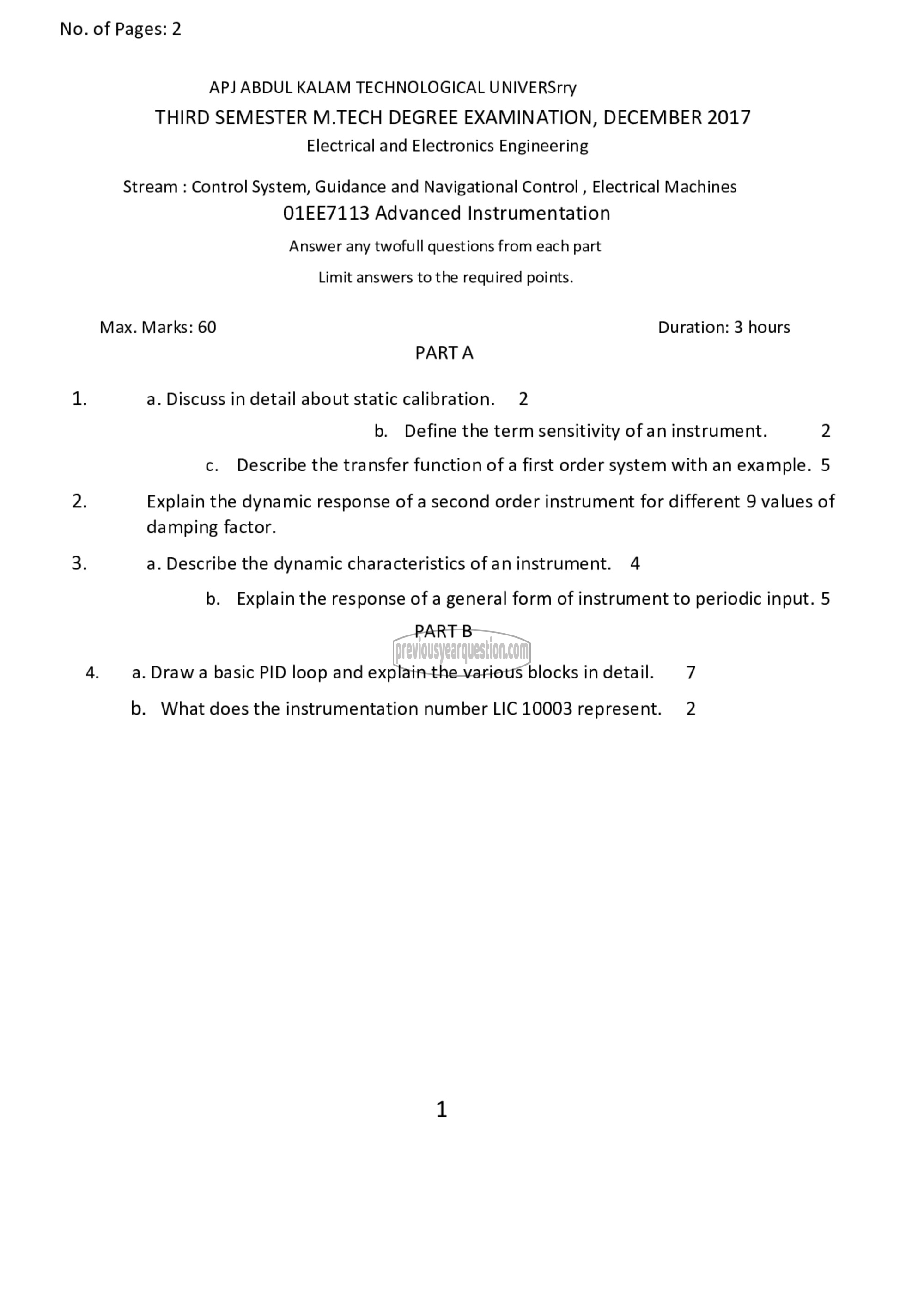

No. of Pages: 2

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSrry

THIRD SEMESTER M.TECH DEGREE EXAMINATION, DECEMBER 2017
Electrical and Electronics Engineering

Stream : Control System, Guidance and Navigational Control , Electrical Machines
017113 Advanced Instrumentation
Answer any twofull questions from each part

Limit answers to the required points.

Max. Marks: 60 Duration: 3 hours
PARTA
1. a. Discuss in detail about static calibration. 2
b. Define the term sensitivity of an instrument. 2

c. Describe the transfer function of a first order system with an example. 5

2. Explain the dynamic response of a second order instrument for different 9 values of
damping factor.
3. a. Describe the dynamic characteristics of aninstrument. 4
0. Explain the response of a general form of instrument to periodic input. 5
PART B
4. 2. Drawa basic PID loop and explain the various blocks in detail. 7

b. What does the instrumentation number LIC 10003 represent. 2
