APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY Previous Years Question Paper & Answer

University : APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
Course : M.Tech

Semester : SEMESTER 1

Subject : Finite Element Method

Year : 2018

Term : JULY

Branch : MACHINE DESIGN

Scheme : 2015 Full Time

Course Code : 01 ME 6103

Page:3

Go Top



PDF Text (Beta):

(0.0)

http://www. ktuonline.com

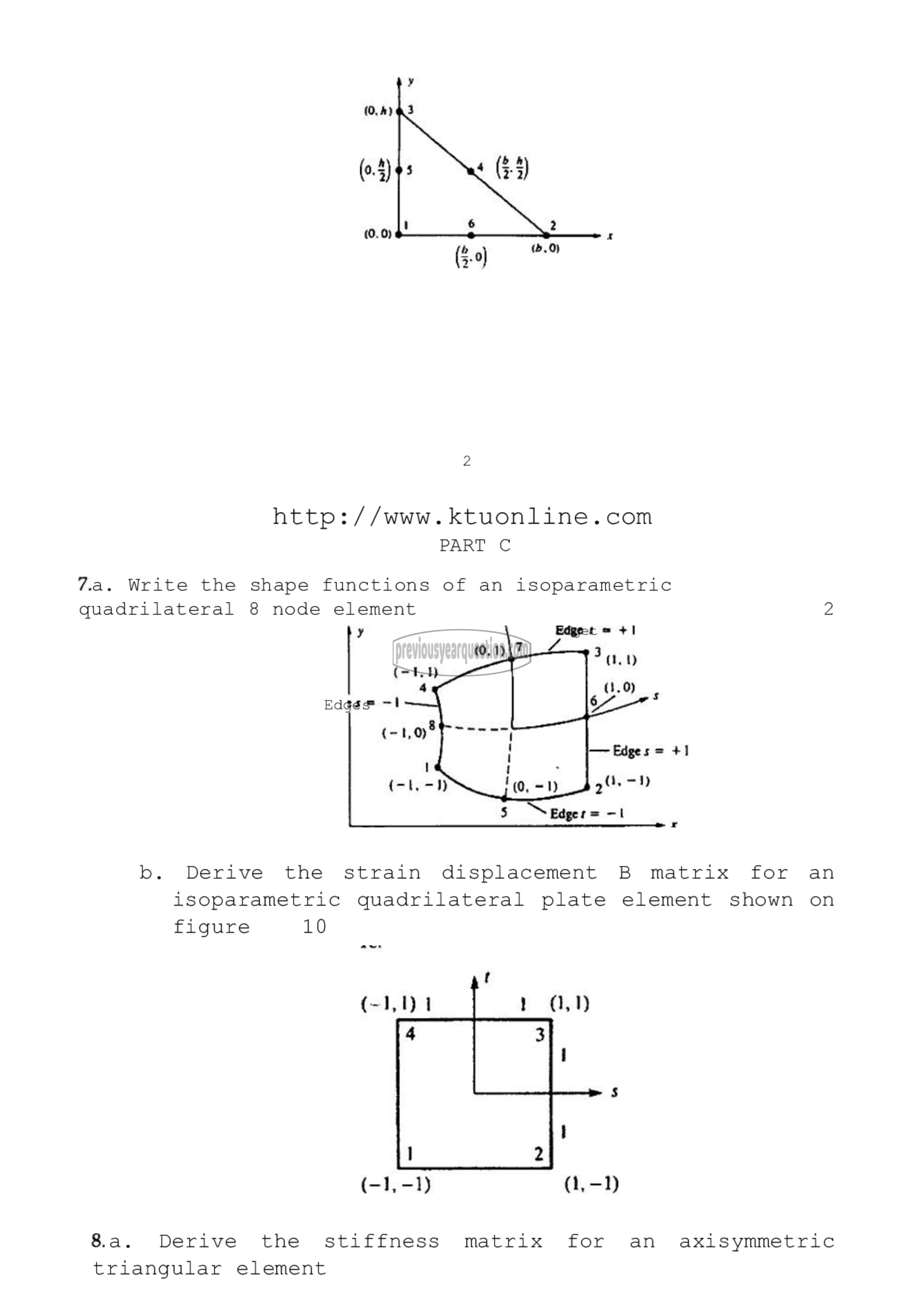

PART C
7.൭. Write the shape functions of an isoparametric

quadrilateral 8 node element 2
Edgeot = +1

b. Derive the strain displacement B matrix for an
isoparametric quadrilateral plate element shown on
figure 10

(-1, -1) (1, -1)

8.൭. Derive the stiffness matrix for an axisymmetric
triangular element
