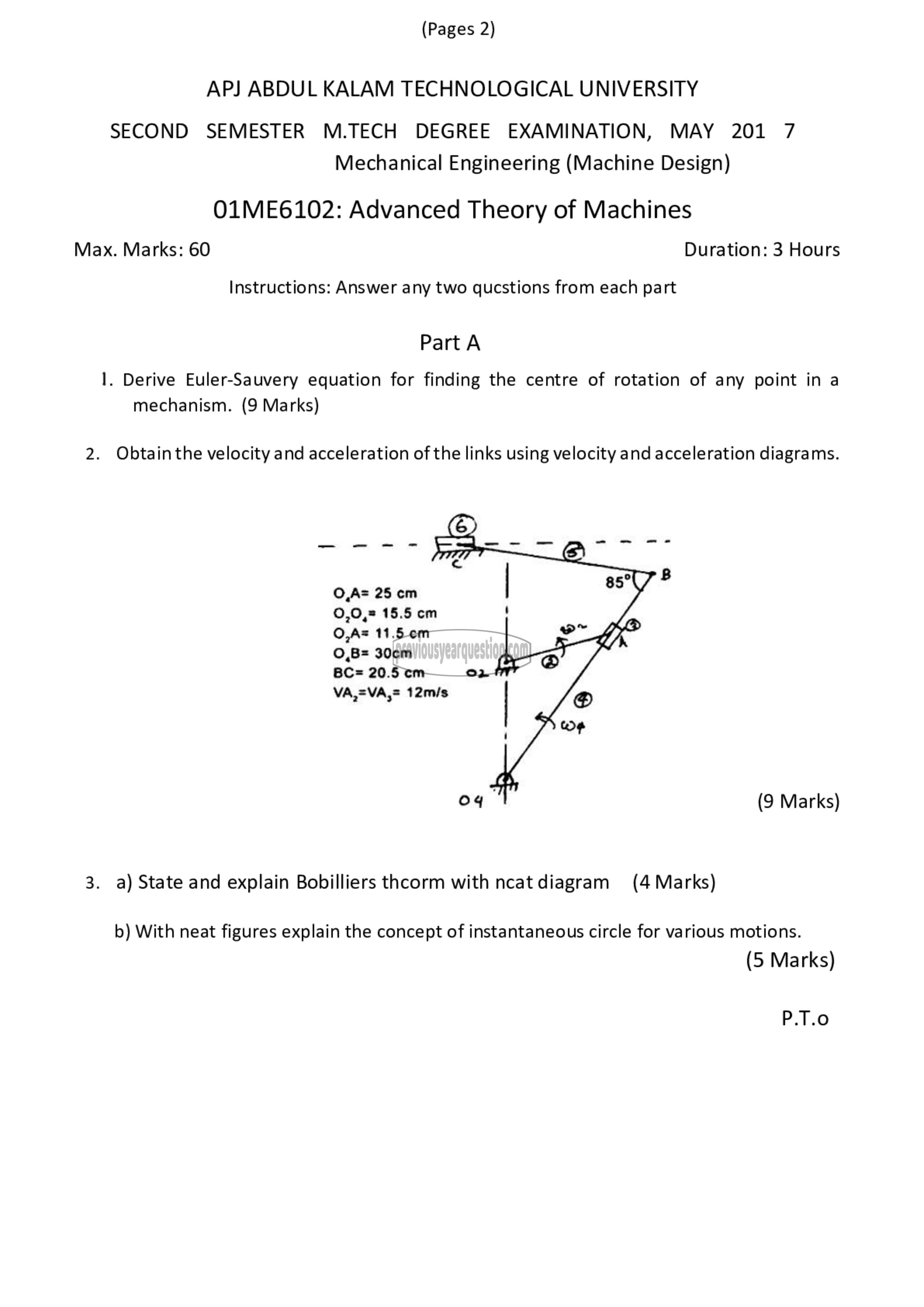

(Pages 2)

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

SECOND SEMESTER M.TECH DEGREE EXAMINATION, MAY 201 7
Mechanical Engineering (Machine Design)

01ME6102: Advanced Theory of Machines
Max. Marks: 60 Duration: 3 Hours

Instructions: Answer any two qucstions from each part

Part A

1. Derive Euler-Sauvery equation for finding the centre of rotation of any point in a
mechanism. (9 Marks)

2. Obtainthe velocity and acceleration of the links using velocity and acceleration diagrams.

0,656 25 cm
0,0,2 15.5 cm
കട 11.5 om
0,856 30cm
BC= 20.5 cm 7
VA,=VA,= 12m/s

०4. (9 Marks)

3. a) State and explain Bobilliers thcorm with 0621 diagram (4 Marks)

b) With neat figures explain the concept of instantaneous circle for various motions.

(5 Marks)

P.T.o
