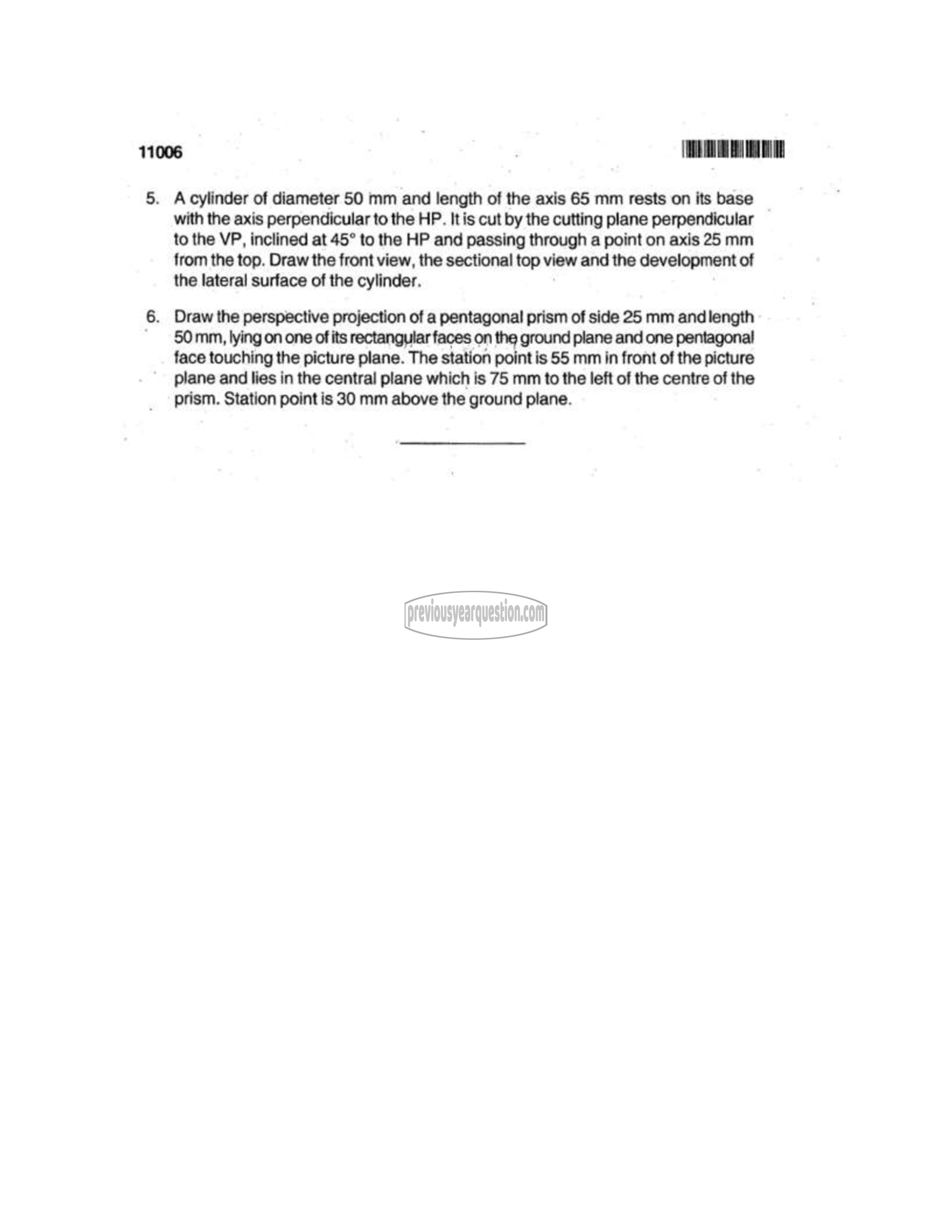

5. Acylinder of diameter 50 mm and length of the axis 65 mm rests on its base
with the axis perpendicular to the HP. It is cut by the cutting plane perpendicular
to the VP, inclined at 45° to the HP and passing through a point on axis 25 mm
from the top. Draw the front view, the sectional top view and the development of
the lateral surface of the cylinder.

6. Draw the perspective projection of a pentagonal prism of side 25 mm and length
50 mm, lying on one of its rectangular faces on the ground plane and one pentagonal
face touching the picture plane. The station point is 55 mm in front of the picture
plane and lies in the central plane which is 75 mm to the left of the centre of the
prism. Station point is 30 mm above the ground plane.
