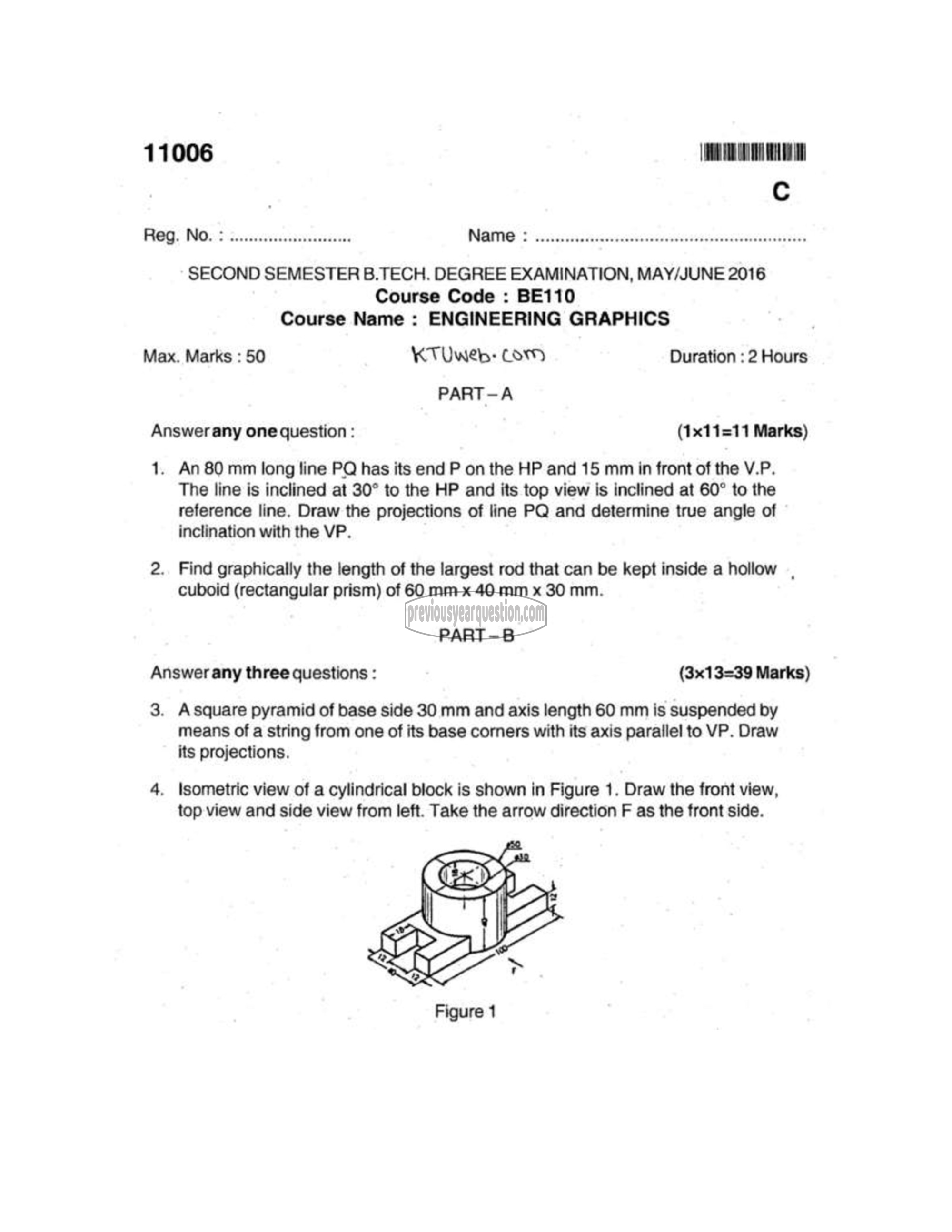

SECOND SEMESTER B.TECH. DEGREE EXAMINATION, MAY/JUNE 2016
Course Code : BE110
Course Name : ENGINEERING GRAPHICS
Max. Marks : 50 KTUWeb: Com Duration : 2 Hours
۲۱۵۸۲۲٢-۸
காள ७19 one question : (1x11=11 Marks)

1. An 80 mm long line PQ has its end P on the HP and 15 mm in front of the V.P.
The line is inclined at 30° to the HP and its top view is inclined at 60° to the
reference line. Draw the projections of line PQ and determine true angle of
inclination with the VP.

2. Find graphically the length of the largest rod that can be kept inside a hollow,
cuboid (rectangular prism) of 60 mm x 40 mm x 30 mm.

PART-B
Answer any three questions : (3x13=39 Marks)

3. Asquare pyramid of base side 30 mm and axis length 60 mm is suspended by
means of a string from one of its base corners with its axis parallel to VP. Draw
its projections.

4. \sometric view of a cylindrical block is shown in Figure 1. Draw the front view,
top view and side view from left. Take the arrow direction F as the front side.
