10201

Reg. NO * .......................- NaMe : ಸ ‏ممم‎ ⋅
⊟⊟∁⊙↕∖∏⊃≘⊡∨⊞⊟⊺⊡↸⊟⋅⊺⊟∁∐⋅∣⊃⊟∁⇂≹⊟⊟⊟≍∧↕∨∐↧∖↧⋀⊺↕⊙↧∖↧⋝

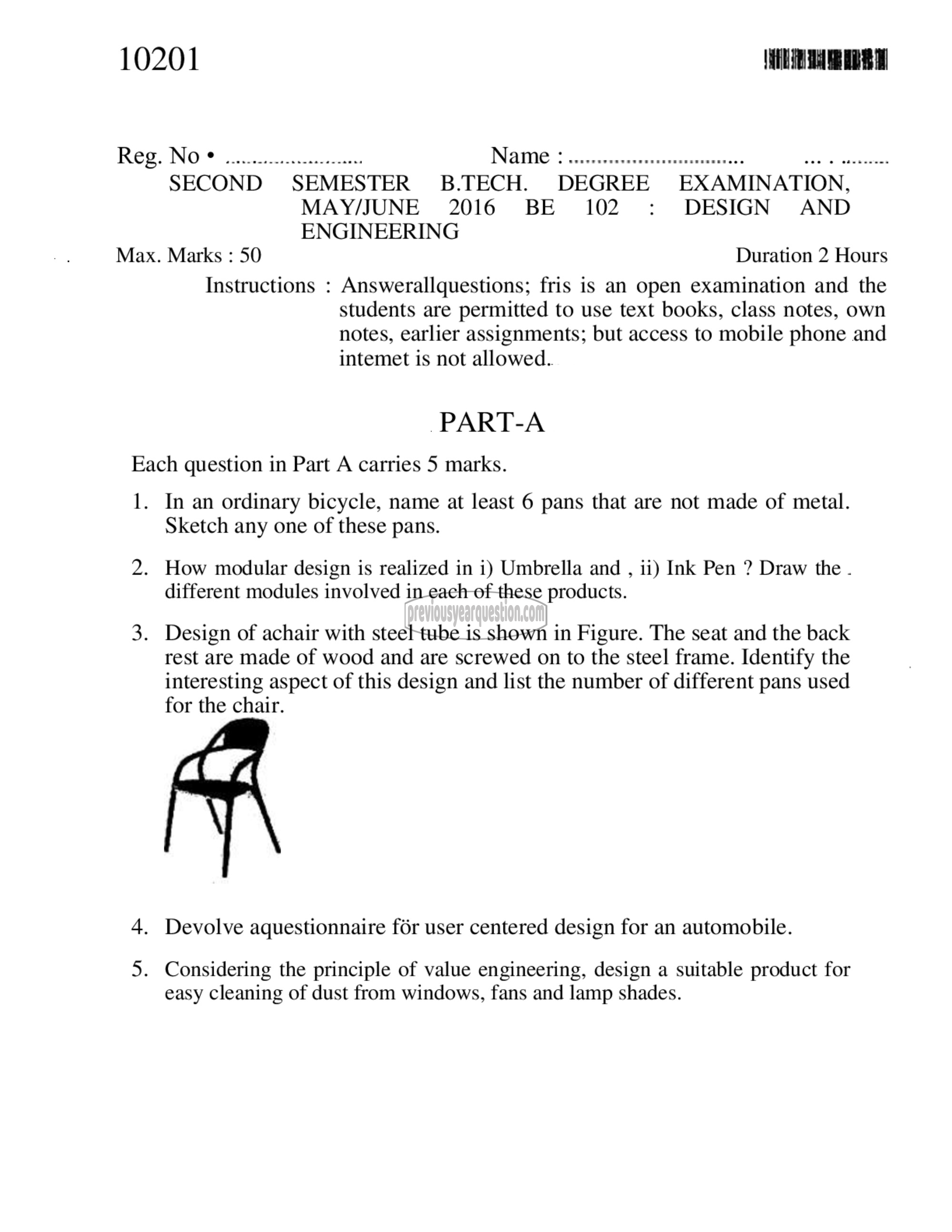

MAY/JUNE 2016 BE 102 : DESIGN AND
ENGINEERING

Max. Marks : 50

Instructions : Answerallquestions; fris is an open examination and the
students are permitted to use text books, class notes, own
notes, earlier assignments; but access to mobile phone and
intemet is not allowed.

-PART-A

Each question in Part A carries 5 marks.

1.

In an ordinary bicycle, name at least 6 pans that are not made of metal.
Sketch any one of these pans.

How modular design is realized in 1) Umbrella and , 11) Ink Pen ? Draw the .
different modules involved in each of these products.

Design of achair with steel tube is shown in Figure. The seat and the back
rest are made of wood and are screwed on to the steel frame. Identify the
interesting aspect of this design and list the number of different pans used
for the chair.

Devolve aquestionnaire लि user centered design for an automobile.

Considering the principle of value engineering, design a suitable product for
easy cleaning of dust from windows, fans and lamp shades.

Duration 2 Hours
