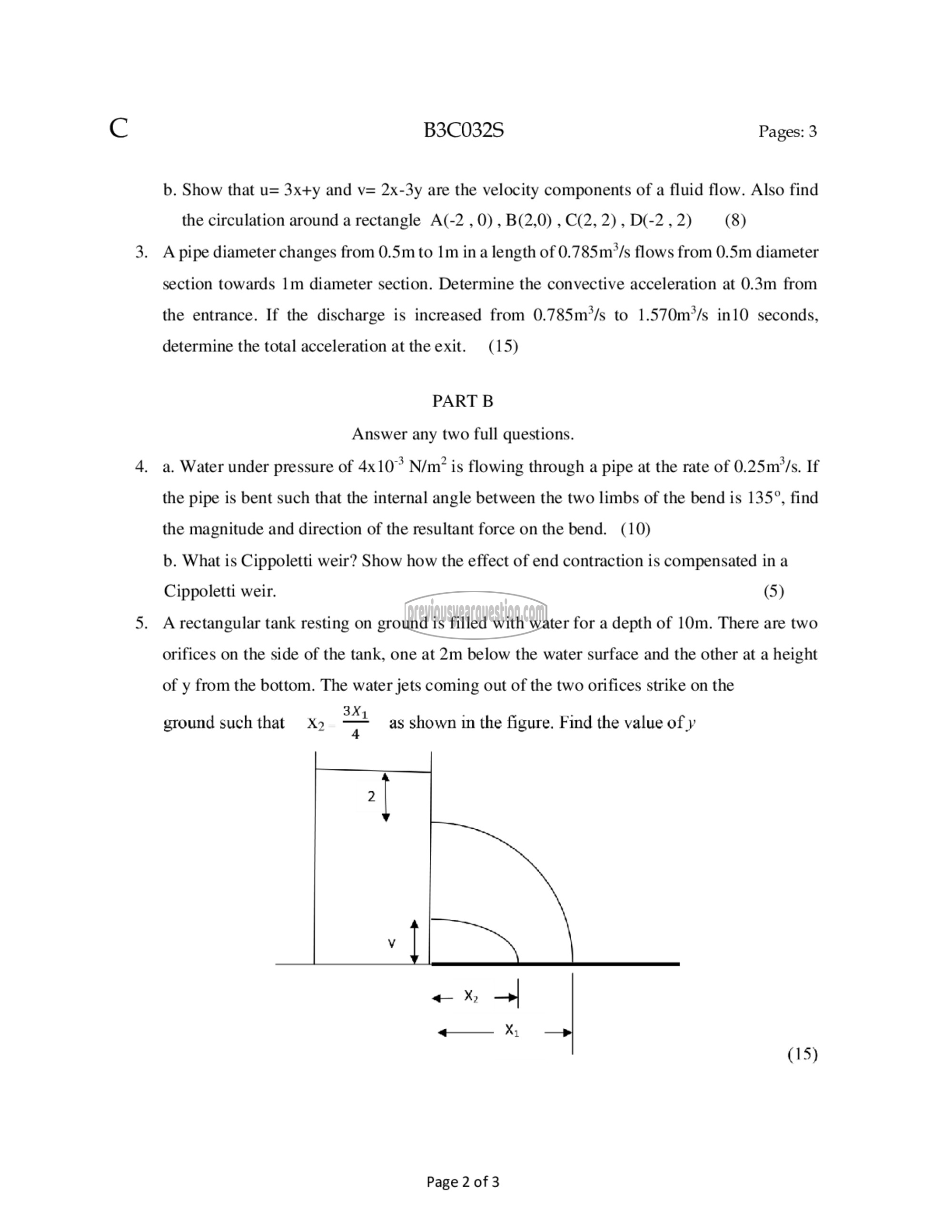

B3C032S Pages: 3

b. Show that u= 3x+y and v= 2x-3y are the velocity components of a fluid flow. Also find
the circulation around a rectangle A(-2 , 0), B(2,0) , C(2, 2), D(-2 , 2) (8)

A pipe diameter changes from 0.5m to Im ina length of 0.785m*/s flows from 0.5m diameter

section towards 1m diameter section. Determine the convective acceleration at 0.3m from

the entrance. If the discharge is increased from 0.785m*/s to 1.570m*/s 1210 seconds,

determine the total acceleration at the exit. (15)

PART B
Answer any two full questions.

a. Water under pressure of 4x 10° N/m? is flowing through a pipe at the rate of 0.25m’/s. If
the pipe is bent such that the internal angle between the two limbs of the bend is 135°, find
the magnitude and direction of the resultant force on the bend. (10)

b. What is Cippoletti weir? Show how the effect of end contraction is compensated in a
Cippoletti weir. (5)

A rectangular tank resting on ground is filled with water for a depth of 10m. There are two
orifices on the side of the tank, one at 2m below the water surface and the other at a height

of y from the bottom. The water jets coming out of the two orifices strike on the

3X ⋅ ⋅
≞⊺∘∎∙⇂⋯↥≲⋃∁∤⊔↾⊐∂⇂⊻⋮ > as shown in the figure. Find the value of y

|

(15)

Page 2 of 3
