$2044

60 kN 30 kN

‎A‏ 1 يفير
‎method‏

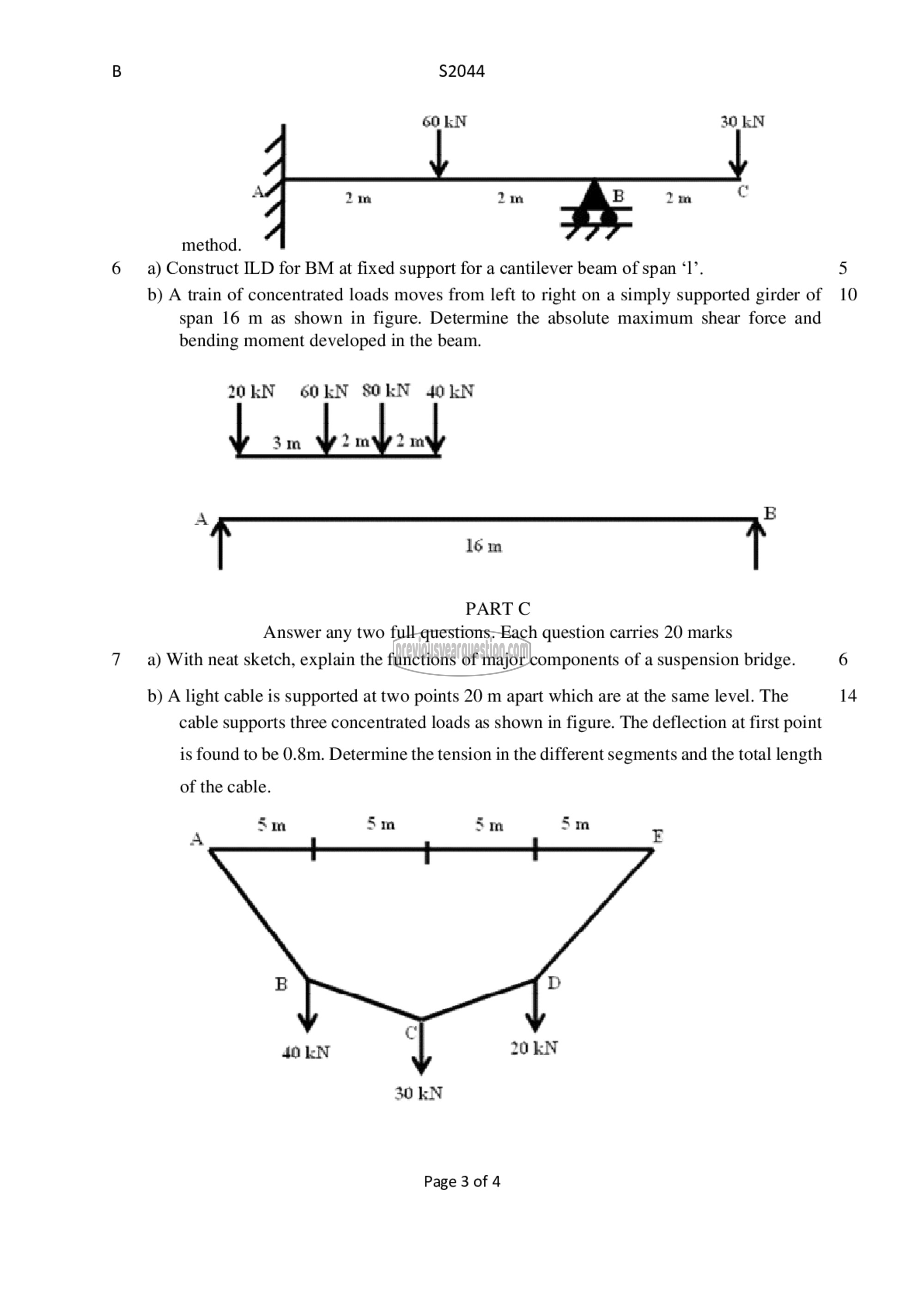

‎a) Construct ILD for BM at fixed support for a cantilever beam of span 5

‎b) A train of concentrated loads moves from left to right on a simply supported girder of 10
span 16 m as shown in figure. Determine the absolute maximum shear force and
bending moment developed in the beam.

‎20kN 60kN 80171 40kN

‎PART ^
Answer any two full questions. Each question carries 20 marks
a) With neat sketch, explain the functions of major components of a suspension bridge. 6

‎b) A light cable is supported at two points 20 m apart which are at the same level. The 14
cable supports three concentrated loads as shown in figure. The deflection at first point
is found to be 0.8m. Determine the tension in the different segments and the total length

‎of the cable.

‎Page 3 of 4
