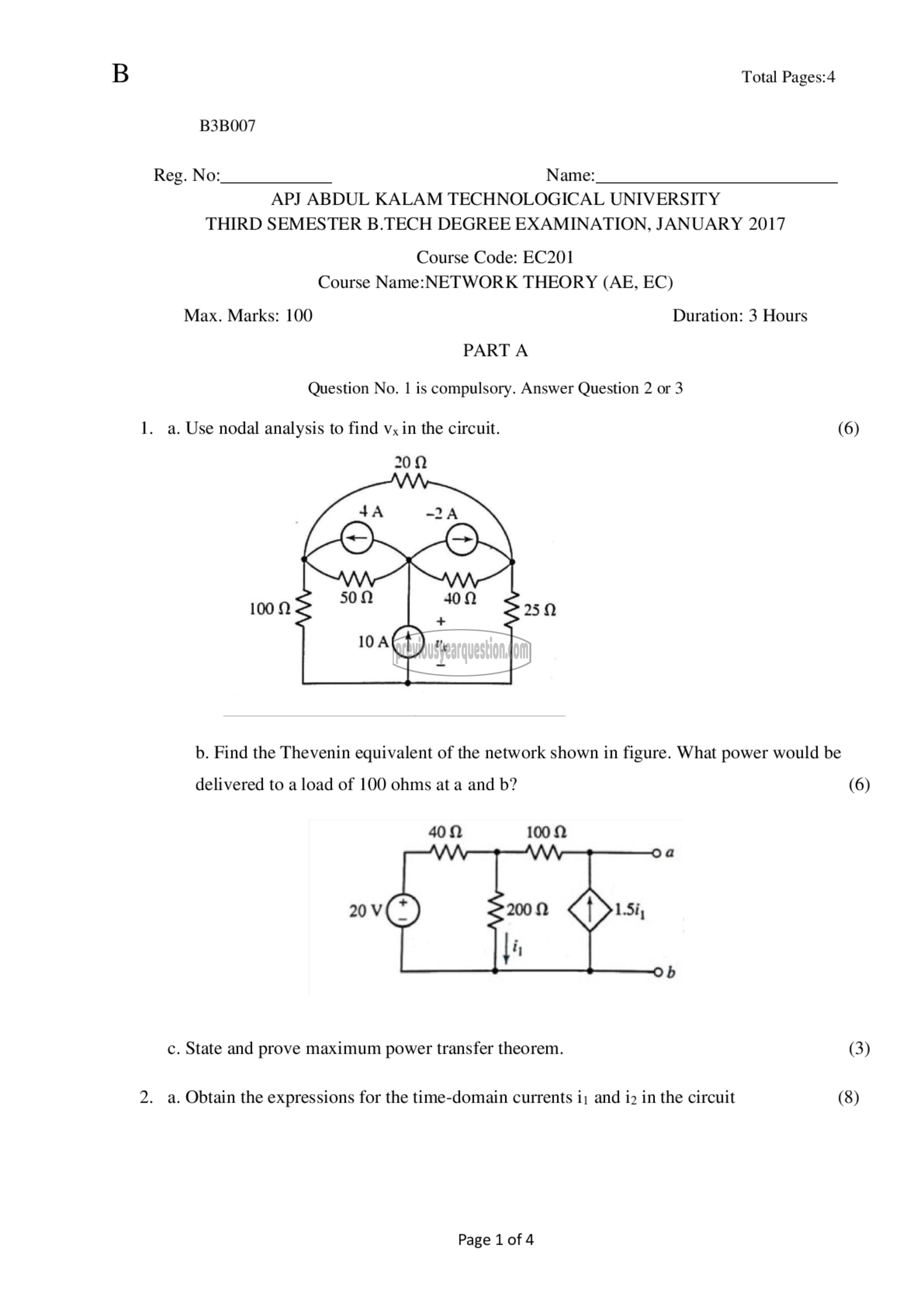

Total Pages:4
B3B007

Reg. No: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
THIRD SEMESTER B.TECH DEGREE EXAMINATION, JANUARY 2017

Course Code: EC201
Course Name:NETWORK THEORY (AE, EC)

Max. Marks: 100 Duration: 3 Hours
PART A
Question No. | is compulsory. Answer Question 2 or 3

1. a. Use nodal analysis to find vx in the circuit. (6)

202

b. Find the Thevenin equivalent of the network shown in figure. What power would be

delivered to a load of 100 ohms at a and 0? (6)

402 1002

c. State and prove maximum power transfer theorem. (3)

2. a. Obtain the expressions for the time-domain currents i; and i2 in the circuit (8)

Page 1 of 4
