NSA192005
shortest path along the curved surface. Mark the shortest path in the front

and top views of the cone.

Module-IV
A sphere of 20 mm radius is placed centrally over a hexagonal slab of side
length 30 mm and thickness 20 mm. Draw the isometric view of the
combination.
A hemisphere of diameter 30 mm rests centrally on its circular base on the
top of a frustum of a cone of base diameter 60 mm, top diameter 30 mm

and height 60 mm. Draw isometric view of the combination.

Module-V

A square prism side of base 40 mm and height 60 mm rests with its base on
the ground such that one of its rectangular face is parallel to and 10 mm
behind the picture plane. The station point is 50 mm in front of picture
plane, 80 mm above ground plane 45 mm to the right of centre of the
prism. Draw the perspective view.

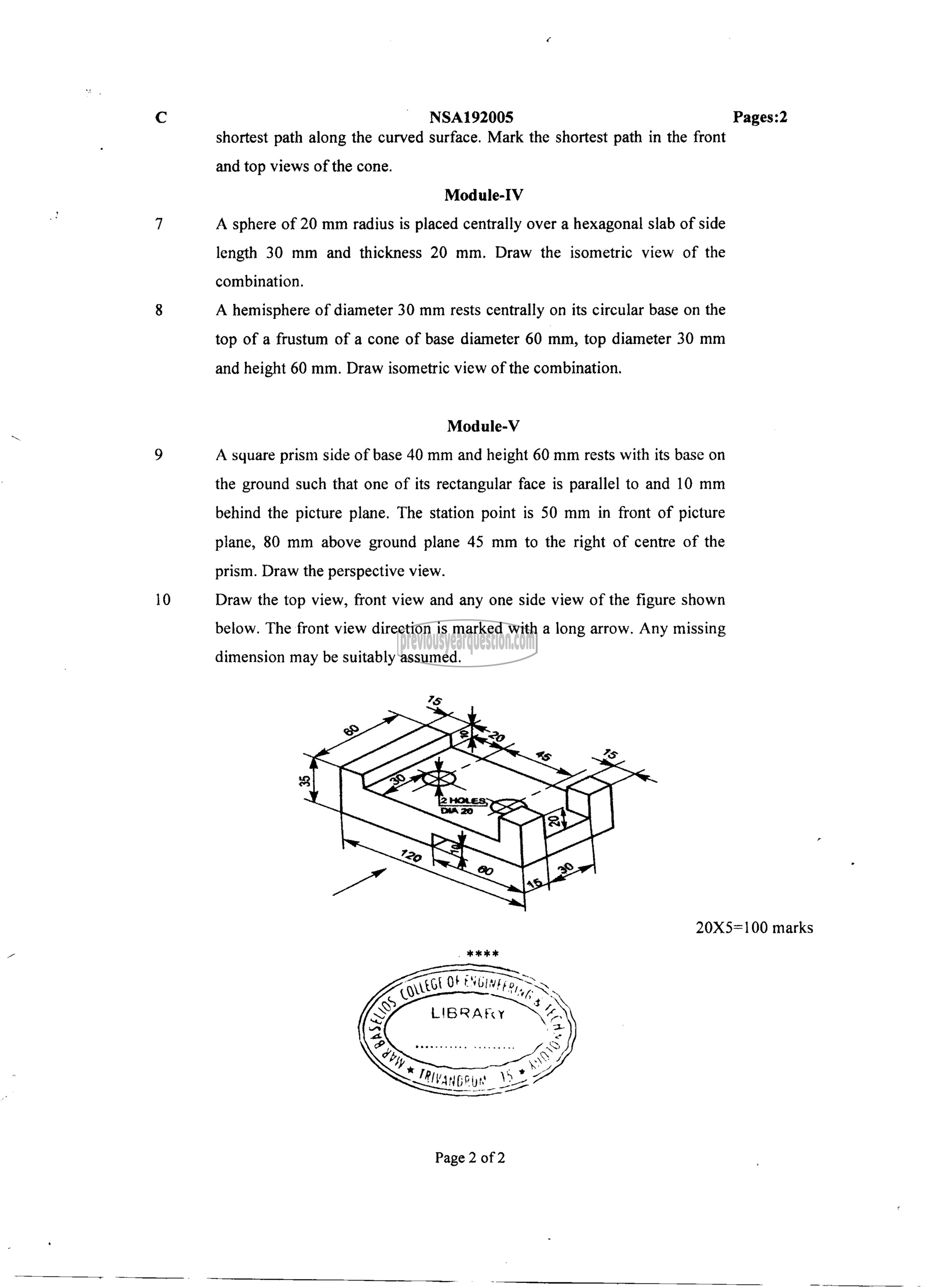

Draw the top view, front view and any one side view of the figure shown
below. The front view direction is marked with a long arrow. Any missing

dimension may be suitably assumed.

20X5=100 marks
