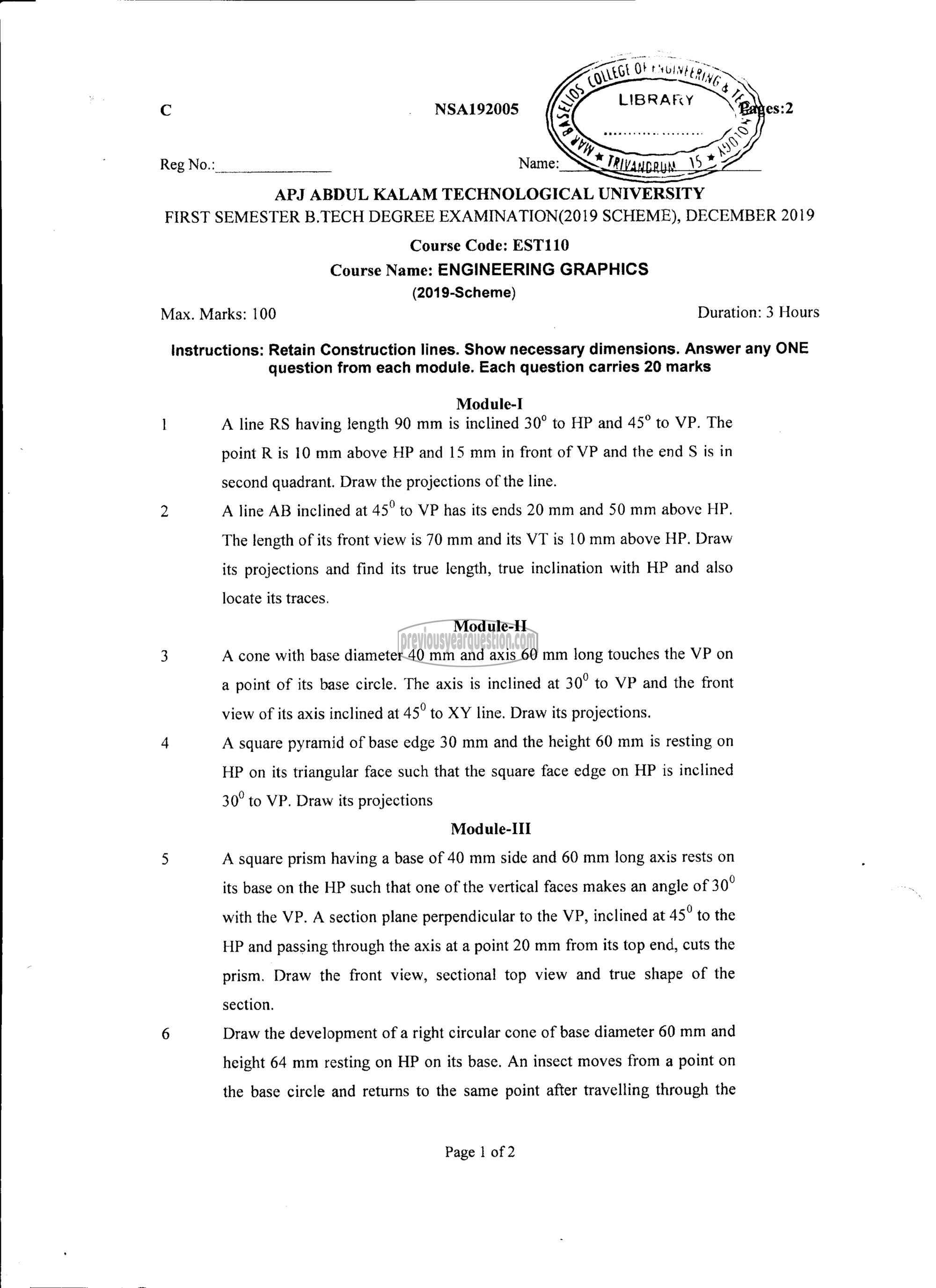

0 NSA192005

Reg No.:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
FIRST SEMESTER B.TECH DEGREE EXAMINATION(2019 SCHEME), DECEMBER 2019

Course Code: EST110
Course Name: ENGINEERING GRAPHICS
(2019-Scheme)
Max. Marks: 100 Duration: 3 Hours

Instructions: Retain Construction lines. Show necessary dimensions. Answer any ONE
question from each module. Each question carries 20 marks

Module-I
1 A line RS having length 90 mm is inclined 30° to HP and 45° to VP. The

point R is 10 mm above HP and 15 mm in front of VP and the end 5 is in
second quadrant. Draw the projections of the line.

2 A line AB inclined at 45° to VP has its ends 20 mm and 50 mm above HP.
The length of its front view is 70 mm and its VT is 10 mm above HP. Draw
its projections and find its true length, true inclination with HP and also
locate its traces.

Module-II

3 A cone with base diameter 40 mm and axis 60 mm long touches the VP on
a point of its base circle. The axis is inclined at 30° to VP and the front
view of its axis inclined at 45° to XY line. Draw its projections.

4 A square pyramid of base edge 30 mm and the height 60 mm is resting on
HP on its triangular face such that the square face edge on HP is inclined
30° to VP. Draw its projections

Module-III

5 A square prism having a base of 40 mm side and 60 mm long axis rests on
its base on the HP such that one of the vertical faces makes an angle of 30°
with the VP. A section plane perpendicular to the VP, inclined at 45° to the
HP and passing through the axis at a point 20 mm from its top end, cuts the
prism. Draw the front view, sectional top view and true shape of the
section.

6 Draw the development of a right circular cone of base diameter 60 mm and
height 64 mm resting on HP on its base. An insect moves from a point on

the base circle and returns to the same point after travelling through the

Page | of 2
