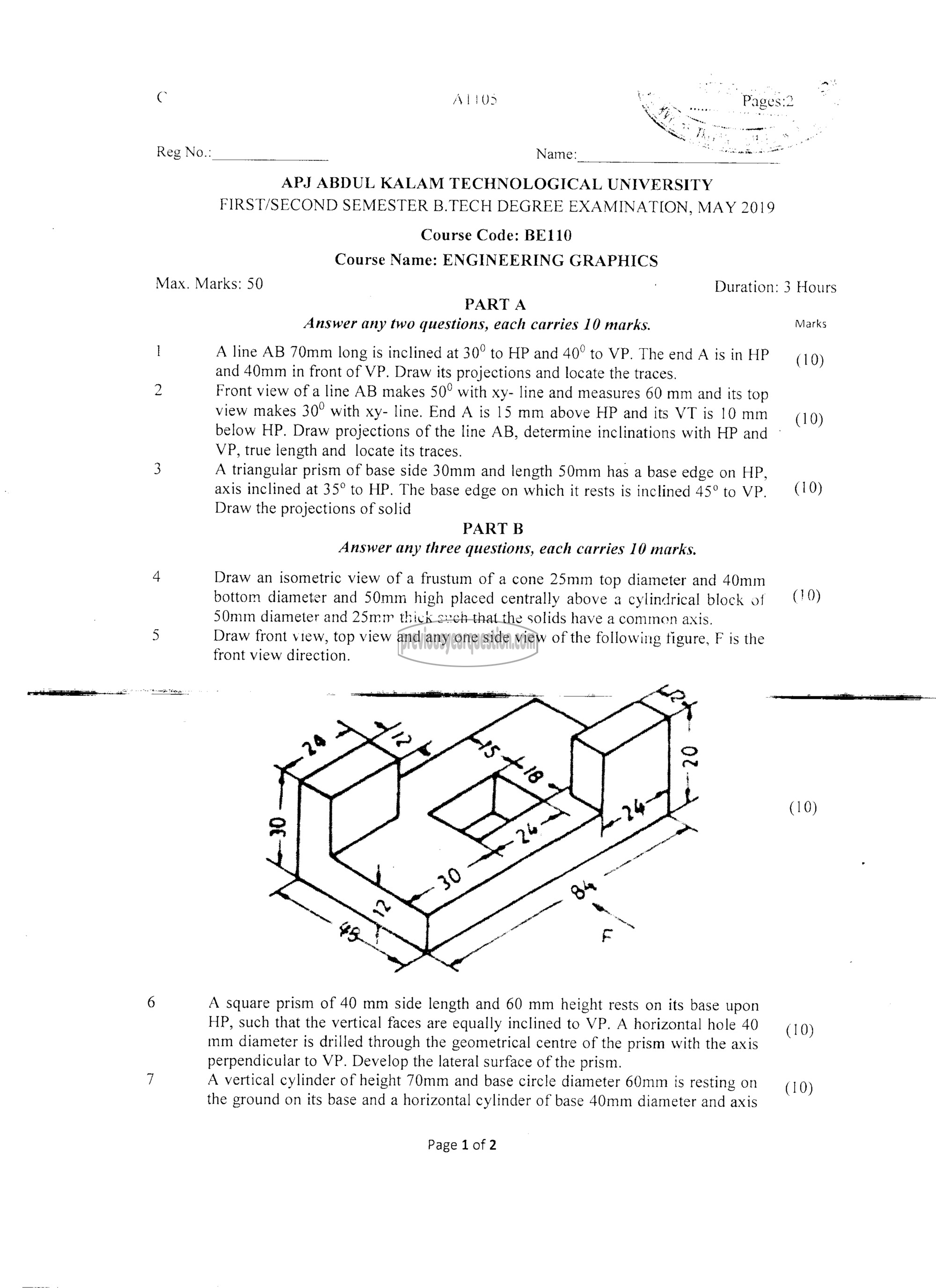

Reg No.:

۸۱۱03۵

Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
FIRST/SECOND SEMESTER B.TECH DEGREE EXAMINATION, MAY 2019
Course Code: BE110
Course Name: ENGINEERING GRAPHICS

Max. Marks: 50 ⋅ Duration

ما

PART A
Answer any two questions, each carries 10 marks.
A line AB 70mm long is inclined at 30° to HP and 40° to VP. The end A is in HP
and 40mm in front of VP. Draw its projections and locate the traces.
Front view of a line AB makes 50° with xy- line and measures 60 mm and its top
view makes 30° with xy- line. End A is 15 mm above HP and its VT is 10 mm

: 3 Hours
Marks

(10)

(10)

below HP. Draw projections of the line AB, determine inclinations with HP and `

VP, true length and locate its traces.
A triangular prism of base side 30mm and length 50mm has a base edge on HP,
axis inclined at 35° to HP. The base edge on which it rests is inclined 45° to VP.
Draw the projections of solid
PART B
Answer any three questions, each carries 10 marks.

Draw an isometric view of a frustum of a cone 25mm top diameter and 40mm
bottom diameter and 50mm high placed centrally above a cylindrical block of
50mm diameter and 25mm thick evch that the solids have a common axis.

Draw front view, top view and any one side view of the following figure, F is the
front view direction.

A square prism of 40 mm side length and 60 mm height rests on its base upon
HP, such that the vertical faces are equally inclined to VP. A horizontal hole 40
mm diameter is drilled through the geometrical centre of the prism with the axis
perpendicular to VP. Develop the lateral surface of the prism.

A vertical cylinder of height 70mm and base circle diameter 60mm is resting on
the ground on its base and a horizontal cylinder of base 40mm diameter and axis

Page 1 of 2

(10)

(10)
